1250mm PP Chamber Plate Industrial Filter Press for Durable and Advanced Solid-Liquid Separation

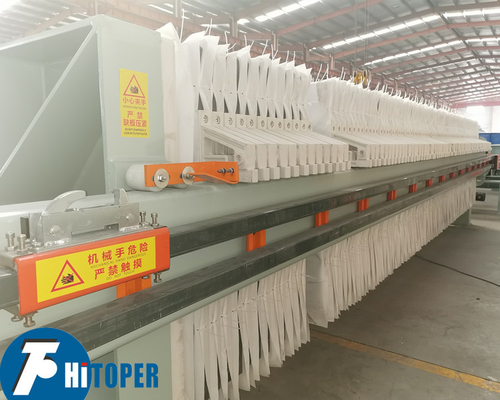

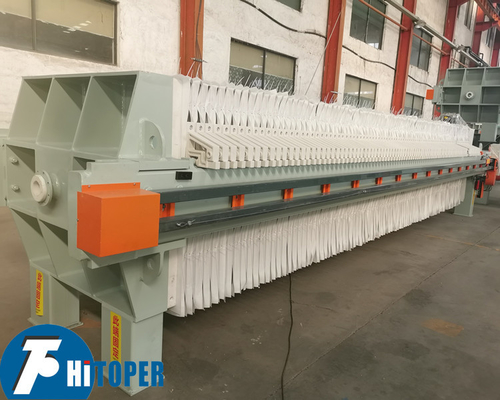

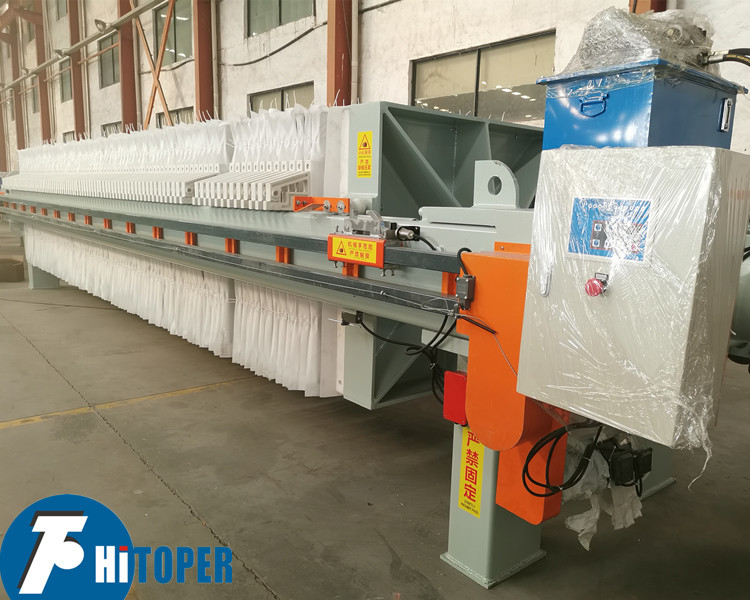

1250mm PP Chamber Plate Industrial Filter Press Automatic Cake Discharged

Hydraulic filter press is the latest water treatment equipment of the our company. It is made of durable material and thus can be used for high capacity filtering consistently and continuously. It is usually used for solid-liquid separation in various wastewater sludge treatment.

Toper--- How does the filter press work?

The slurry is pumped into the filter press. The solids are evenly distributed during the feeding (filling) cycle.
Solids began to accumulate on the filter cloth. Most of the solid/liquid separation is done through the filter cake on the cloth. At first, some fine powder may pass through the filter cloth (1), but eventually, the solids begin to form a layer on the filter cloth (2) like a pre-coating. This layer traps fine particles and forms a filter cake (3).Solids accumulate on the filter cloth .

Toper ---What is a filter press? How does the filter press work?

When the filter press generates pressure, solids accumulate in the chamber until they are completely filled with the filter cake. When the chamber is full, the filling cycle is complete. The filtrate (liquid) enters the manifold through the corner holes and flows out of the filter bag (plate). When the correct valve in the manifold is opened, the filtrate is discharged from the press through a point, the filtrate outlet.

Toper--- How long does the filling cycle take?

The filling period depends on many parameters. The most important parameter is the nature of the material to be dewatered. The mortar easily releases water and dehydrates quickly. On the other hand, the aluminum hydroxide waste slurry in the manufacture of beverage cans is not easy to release its water and is slowly dehydrated.

The next most important parameter is the weight concentration of solids in the slurry. The filling period of a slurry with a solids content of 5% is approximately twice that of a slurry with a solids content of 10% (all other parameters are equal). This is because the press must process half of the water to be filled with solids.

Other parameters include the thickness of the filter cake, the maximum feed pressure to feed the slurry into the press, and the choice of filter cloth.

Our filter press technical parameters.

How to order filter press

According to your material property, processing capacity, solid content, we will give you a best suitable type filter press, like XZ30/870-30U, XZ100/1000-30U or others.

2. Together with specific requirments, select a right flow type(open or close), washable or non-washable filter plate, suitable voltage in your country.

3. The feeding pump is not included in the main machine, and if you need, let me know, we can help you to purchase it from our partner company.
