| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | GF/GQ45 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |

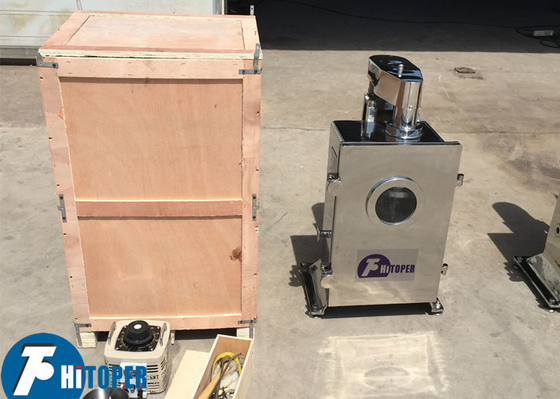

| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 60 sets per month for this tubular centrifuge |
| Drum Diameter: | 45mm | Drum Volume: | 0.4L |
|---|---|---|---|
| Drum Rotate Speed: | 10000-28000r/min | Separation Factor: | 19800 |
| Water Flow Capacity: | 100kg/h | Power: | 0.4kw |
| Weight: | 90KGS | Voltage: | 220V/50HZ/ 1PHASE |
| Material: | Stainless Steel | Function: | Solid-liquid,liquid-liquid Separation |
| Condition: | New | Warranty: | 12 Months |

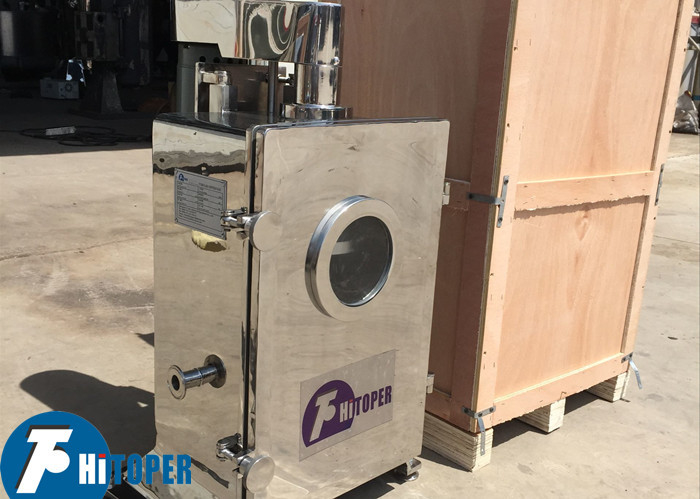

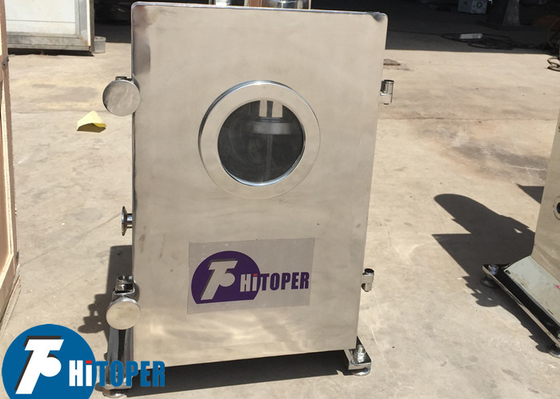

10000-28000r/min Laboratory High Speed Small Tubular Centrifuge,Lab Separator of 1phase Power
The tubular centrifuge is a kind of precision equipment, which has specialization, solid and liquid with small solid particles and similar specific gravity, and liquid-liquid solid separation. It is selected by many industries such as food, pharmaceutical, chemical and biological products. device.
Working Principle Of The Laboratory High Speed Small Tubular Centrifuge :
The principle of the tubular centrifuge is to effectively separate the materials of different specific gravity by the centrifugal force generated by the centrifugal force. According to different separation principles, tubular centrifuges can be divided into two types: clarified type (GQ) and separated type (GF).

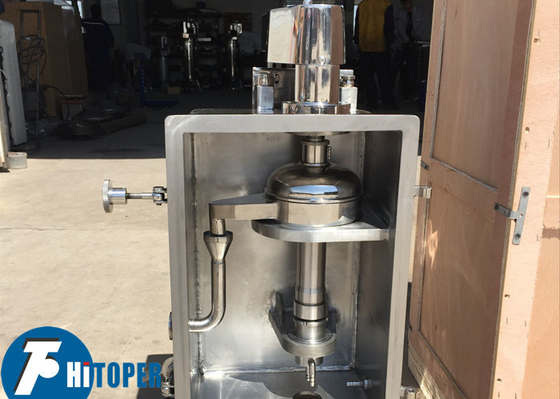

The main function of clarified tube centrifuge is to treat two separations of liquid and solid; The main function of the centrifuge is to treat liquids in liquid or liquid, liquid and solid phases. The tubular separator consists of a fuselage, a transmission, a drum, and a collecting tray. The inlet bearing housing is composed of a flexible main shaft on the upper part of the drum and a damper bearing on the lower part.
The motor passes through the transmission, so that the axis of the drum itself rotates at a high speed, forming a strong centrifugal force field inside the drum, and the material has a bottom inlet inlet. The centrifugal force of the drum causes the liquid to flow upward along the inner wall of the drum, so that the material liquid is separated according to the density difference of the different components, and the layer is discharged from the outlet of the liquid pan.
The tubular centrifuge is characterized by the separation of solid phase impurities in the liquid by the machine to achieve a clarifying effect. It is used to separate various suspensions that are difficult to separate. It is especially suitable for solid-liquid separation with large concentration and small viscosity, fine solid phase particles and small solid-liquid gravity. The solid phase should be taken out after shutdown.
Technical Parameters Of The High Speed Tubular Centrifuge:
| Model | Drum |
Nozzle diameter |
Productivity (water flow) (kg/h) |
Power (KW) |
Weight (kg) |
||||
|
Inner diameter |
Height (mm) |
Volume (L) |
Rotary speed (r/min) |
Separation factor |
|||||
| GF45 | 45 | 280 | 0.4 | 28000 | 19800 | 2,3 | 100 | 0.55 | 90 |
| GF75 | 75 | 450 | 2.2 | 19000 | 15700 | 4,6 | 600 | 1.5 | 300 |
| GF105 | 105 | 730 | 6 | 16300 | 15620 | 6,8 | 1200 | 2.2 | 570 |
| GF125 | 125 | 730 | 7.4 | 15000 | 18000 | 5,8,9 | 1500 | 3.0 | 610 |
| GF150 | 142 | 730 | 10 | 14000 | 15700 | 8,10,12 | 2500 | 3.0 | 665 |
