| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XZ240/1250-30U |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Best factory price |
| Packaging Details: | 1*40GP. |
| Delivery Time: | 20-30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this chamber filter press |
| Filter Area: | 240m2 | PP Plate Size: | 1250*1250mm |
|---|---|---|---|
| Filter Chamber Volume: | 3655Liters | Filter Number: | 88pcs |
| Filtrating Pressure: | 6Bar | Motor Power: | 4000w |
| Full Weight: | 11tons | Dimension: | 6.2*1.8*1.6m |
| Operation Type: | Automatic | Feeding Method: | Pump Feeding |
| Compress Type: | Hydraulic Compress | Filter Medium: | Filter Cloth |
| Color: | Orange Or Customized | Conditon: | New |

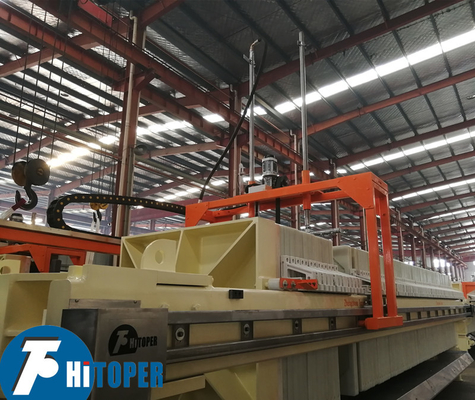

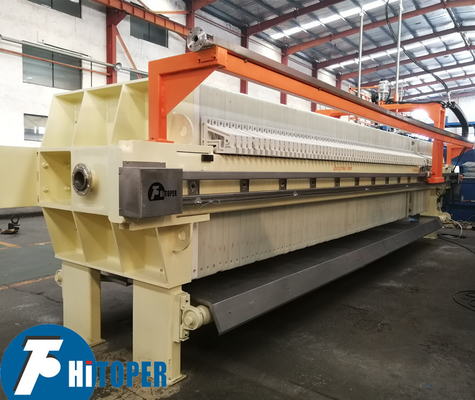

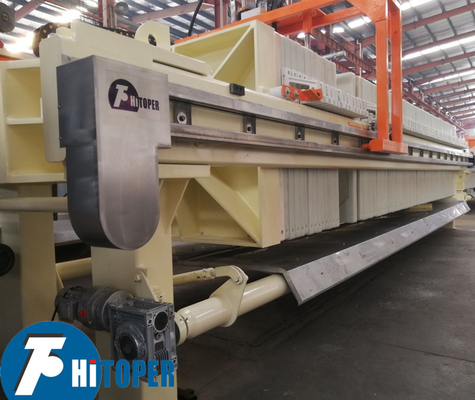

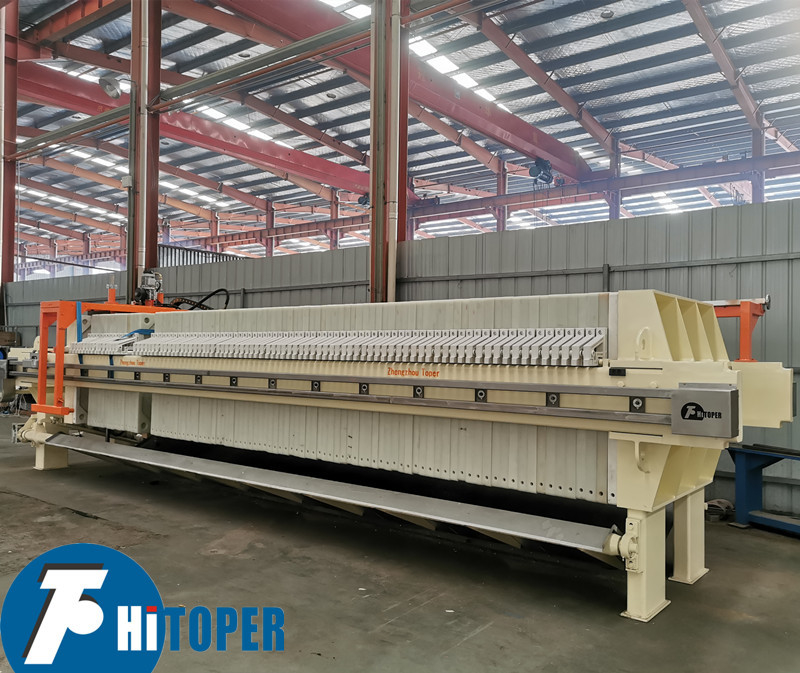

Customized 240m2 Automatic Chamber Filter Press 1250x1250mm High Temperature PP Plate
Automatic filter press is controlled by hydraulic system, electric control components are all adopted famous brand products, realize manual control and full computer automatic control.
The hydraulic device is used as the power mechanism for pressing and loosening the filter plate, and the electric contact pressure gauge is used to realize actions such as pressure keeping, compression, return, and plate pulling, etc. can be achieved automatically. Electrical parts are equipped with a variety of safety devices to ensure the safety of operators and the normal operation of the filter presses.
Advantages of this automatic filter press:
1.Short working cycle and high efficiency.
2.Big capacity. Unique plate design makes filtrate discharge more smoothly to make higher processing capacity.
3.Good filtering performance. Our filter press can endure higher feeding pressure, so that get lowest cake moisture.
4.Low running cost. According to CE standard, our filter press has remarkable performance to decrease the running cost.
5.Filter plate are made of reinforced polypropylene with features of high strength, corrosion resistance, nontoxic and odorless.
6.According to your material we will recommend special filter cloth, which can improving the filtering accuracy and efficiency .
7.Main beam material is Q235B/Q345B, with sand blasting processing.
8.Hydraulic station adopt ABB motor ensure stable performance.
9.Hydraulic squeezing ensures no leakage to avoid secondary pollution.
10.Cabinet elements adopts international famous brands: Siemens Schneider etc.
Working principle of this automatic filter press:
1. Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle.
2. Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.
3. When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.
4. Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.
Our filter press technical parameters.
| Type |
Filter area (m2) |
Filter plate size (mm)
|
Filter cake thickness (mm) |
Filter chamber volume(L) |
Filter plate number(PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XZ100/1250-30U | 100 | 1250×1250 | 30 | 1479 | 36 | 0.6 | 4.0 | 8307 | 5020×1800×1600 |
| XZ120/1250-30U | 120 | 1777 | 43 | 9308 | 5470×1800×1600 | ||||
| XZ140/1250-30U | 140 | 2094 | 51 | 10455 | 5990×1800×1600 | ||||
| XZ160/1250-30U | 160 | 2381 | 58 | 11492 | 6450×1800×1600 | ||||
| XZ180/1250-30U | 180 | 2669 | 65 | 12494 | 6905×1800×1600 | ||||
| XZ200/1250-30U | 200 | 2965 | 72 | 13504 | 7360×1800×1600 | ||||
| XZ220/1250-30U | 220 | 3285 | 80 | 14652 | 7880×1800×1600 | ||||
| XZ250/1250-30U | 250 | 3737 | 91 | 16227 | 8600×1800×1600 | ||||
| XZ200/1500-30U | 200 | 1500×1500 | 3025 | 49 | 0.6 | 7.5 | 20030 | 6400×2200×1900 | |
| XZ250/1500-30U | 250 | 3739 | 61 | 22978 | 7225×2200×1900 | ||||
| XZ300/1500-30U | 300 | 4413 | 74 | 26026 | 8130×2200×1900 | ||||
| XZ350/1500-30U | 350 | 5210 | 86 | 29220 | 8570×2200×1900 | ||||
| XZ400/1500-30U | 400 | 6007 | 99 | 32574 | 9880×2200×1900 | ||||
| XZ450/1500-30U | 450 | 6743 | 111 | 35586 | 10820×2200×1900 | ||||
| XZ500/1500-30U | 500 | 7478 | 123 | 38606 | 11560×2200×1900 | ||||
| XZ600/2000-30U | 600 | 2000×2000 | 40 | 12000 | 85 | 0.6 | 7.5 | 49000 | 11100×3000×2500 |
| XZ700/2000-30U | 700 | 14000 | 99 | 53000 | 12200×3000×2500 | ||||
| XZ800/2000-30U | 800 | 16000 | 107 | 57000 | 13350×3000×2500 | ||||
| XZ900/2000-30U | 900 | 18000 | 127 | 61000 | 14500×3000×2500 | ||||
| XZ1000/2000-30U | 1000 | 20000 | 141 | 65000 | 15600×3000×2500 |
Our service:
1.We have professional person on line to provide you comprehensive.easy-understanding and detail information and technical data about the machine you interested;solve your confusions or questions about the machine
2.Advise you the most suitable type of machine according to your requirement for your reference
3.Arrange the schedule if you pay a visit to our factory.
4.Send our technical engineer to your country for installation ,operation test ,slove questions and so on if required.
